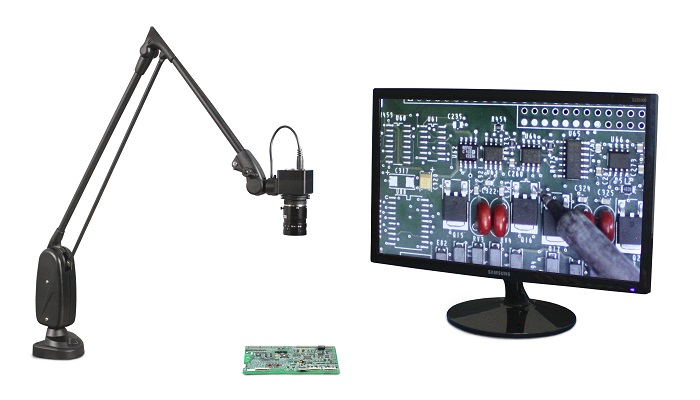

CODA Digital Magnification and Inspection System CODA Digital Magnification and Inspection System with 21.5" Monitor

CODA combines a true high definition 1080p resolution camera with Dazor’s time-tested articulating arm.  This streamlined system is designed to provide the ultimate in magnification simplicity for production and quality control inspection.

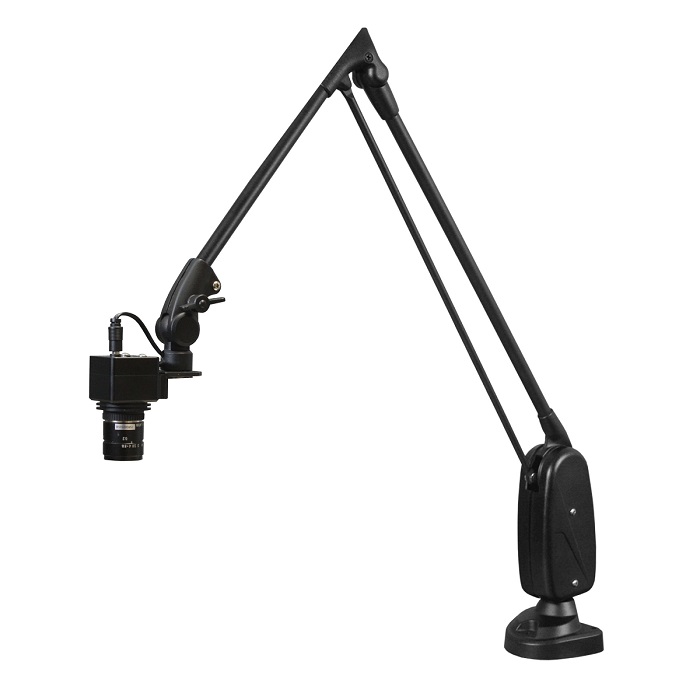

Dazor’s patented and familiar “floating arm” allows the user complete control over orienting the HD camera into any desired position while minimizing the system’s total footprint.  No longer is it necessary to clutter valuable benchtop real estate with a heavy boom stand or other weighted base.

CODA Digital Magnification and Inspection System



CODA is a highly functional ergonomic tool for anyone performs daily work requiring magnification.  Its uses include all inspection tasks, small component assembly, production, repairs, work visualization and group training.

CODA allows for direct-connect monitor viewing with high definition resolution.  Images are viewed real-time at 60fps with no latency or delays in video streaming.

Payback from improved productivity, early defect identification, error reduction and worker comfort will be realized quickly.



24" Arm 16mm Lens* 35mm Lens*
Magnification 2.3X 15.0X 5.0X 13.6X
    Working Distance     600mm      80mm      600mm     225mm
Field of View 207mm 32mm 92mm 35mm



34" Arm 16mm Lens* 35mm Lens*
Magnification 1.8X 15.0X 4.1X 13.6X
    Working Distance     750mm      80mm      750mm     225mm
Field of View 255mm 32mm 115mm 35mm



Features

  • Camera:  1080p High Definition, 1/2.33” 14 MP CMOS Sensor 4416 (H) x 3312 (V)
  • Patented floating adjustable arm for easy camera orientation into any position
  • Sturdy mount can be clamped or bolted to a horizontal surface – optional mounts available
  • All metal construction for rugged, heavy use environments
  • Includes 6' HDMI cable
  • Optional 21.5” HD monitor available
  • Optional HD Video/Image Frame Grabber available
  • Made in the USA
  • 2-Year Limited Warranty

CODA Digital Magnification and Inspection System Brochure

SKU CD
Weight 10.00 lbs

Price: $1195.00
