LED Area Light
LED

Area Light

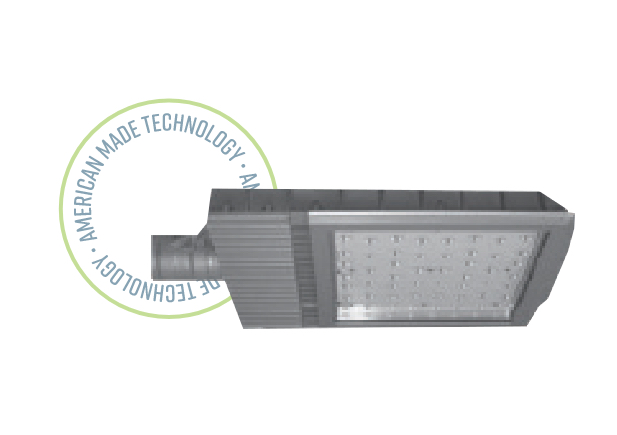

The Area Light is a powerful outdoor LED luminaire designed to complement and securely illuminate architectural environments and roadways. It is deployed for high-output illumination in office complexes, campuses, parking lots, streets, and roadways where safety as well as design are top priorities.

STANDARD FEATURES
  • Dimmable 1-10V
  • Warrantied in the USA
  • Toxin-Free Paint
  • Wet Location Rated
  • Temperature Range: -40°C - 40°C
  • Weather Resistant Coating
  • 10 Year Warranty
Options
  • Photocell Sensors
  • Backup Battery
  • Motion Sensors
  • 347-480V Drivers Available
Finish


Bronze



Custom

Quality Workmanship

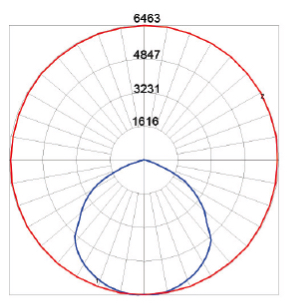

Optics

The Area Light is available in color temperatures of 4000K and 5000K with 86 CRI for maximum nighttime visibility. Unit lenses can be optioned as tempered clear flat glass, or tempered prismatic glass. Output is especially shaped for roadway appropriate illumination. LM-79 reports are available upon request.

Electrical

Units are available in wattages of 180W and 300W, providing 17,685 LM and 38,089 LM of output, respectively. Input voltage is available in a standard 120~277V, with 347~480V drivers as an option. Fixture lifespan is rated for 50,000 hours or greater, equivalent to 12 years of function at 12 hours per night.

Construction

The IP67-rated, die cast aluminum housing provides structural strength along with resistance to corrosion and impact. The luminaire is rated for wet location usage. The housing integrates heat management and is rated for operation from -40º to 40ºC. Superior thermal management allows electrical and optical components to operate at optimal efficiency with exceptional component longevity.

Mounting

The Area Light mounts via slipfitter, wall bracket, yoke, or an two-piece swivel bracket. The modular design aims to maximize versatility in installation and design.

Sample Order: ASDZ30-300-50-C-F-Z

Series Wattage CCT Voltage Lens Optics Finish Color Options

ASDZ30 =Area Light

-300 = 300W

-50 = 5000K

Blank = 120-277V

-V = 347-480V

-C = Clear Glass

-P = Prismatic Glass

-A = Type 1

-B =Type II

-C = Type III

-F = Type V

-Z = Bronze

R7=7-Pin ANSI C136.41-2013 Twist

Lock Receptacle

SF=Single Fuse

DF=Double Fuse

SP=Surge Protection


P40=P18140 110-120VAC Instant

P42=P18142 110-277VAC Instant

P50=P18150 120VAC Time Delay

P52=P18152 277VAC Time Delay

Performance Data

Part No. Watts (W) Input Voltage
(VAC)
Efficacy (Lm/W) Lumens(Lm) CRI CCT (K) L70 (Hours) Dimensions in Inches (L*W*H)
ASDZ30 310 120-277 347-480 130 41,000 > 80 4000 5000 50,000 27.75*4.13*15.13

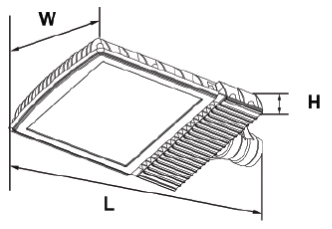

Diagrams
