CODA Digital Magnification and Inspection System
LED
Redefining Worker Comfort & Productivity

CODA Digital Magnification and Inspection System

The CODA digital magnification and inspection system allows for direct-connect monitor viewing with high definition resolution. Images are viewed in real-time at 60fps with no latency in video streaming. Immediate payback from improved productivity, early defect identification, error reduction and worker comfort will be realized.

Color Options


Black



A Highly Functional Ergonomic Tool

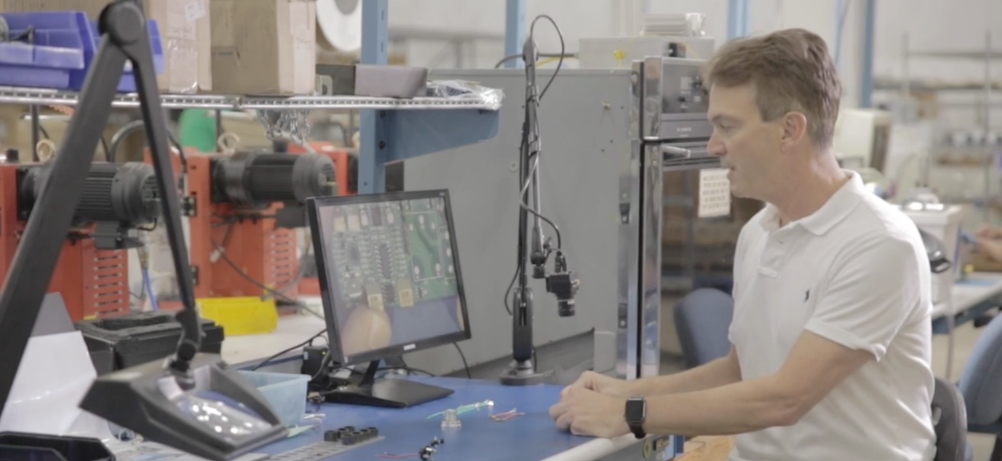

CODA is a highly functional ergonomic tool for anyone performing daily work requiring magnification. Uses include all inspection tasks, small component assembly, production, repairs, work visualization and group training.

Watch Video

A Highly Functional Ergonomic Tool

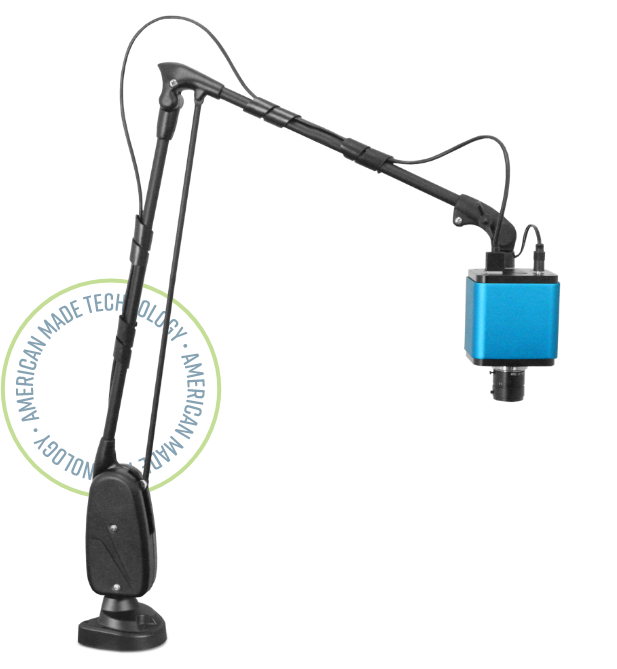

Floating Arm Technology

Dazor’s patented classic-style floating arm for smooth and easy positioning of the camera to any position.

  • Patented counter-balanced spring mechanism
  • Arms stay in position with finger touch
  • Holds position without drifting
  • Time tested
Floating Arm Technology

Quality Workmanship

Camera

1080p High Definition, 1/2.33” 14 MP CMOS Sensor 4416 (H) x 3312 (V).

Floating Adjustable Arm

Patented floating adjustable arm for easy camera orientation into any position.

All Metal Construction

All metal construction for durability –suitable for high use environments.

Mounting Options

Desk Bases, Clamp Mounts, and Floor Stand Models available (sold separately).

Professional Grade Quality

Made in the USA of high quality materials.

Magnification Options

24" Arm 16mm Lens* 35mm Lens*
Magnification 2.3X 15.0X 5.0X 13.6X
    Working Distance     600mm      80mm      600mm     225mm
Field of View 207mm 32mm 92mm 35mm
34" Arm 16mm Lens* 35mm Lens*
Magnification 1.8X 15.0X 4.1X 13.6X
    Working Distance     750mm      80mm      750mm     225mm
Field of View 255mm 32mm 115mm 35mm
